Products

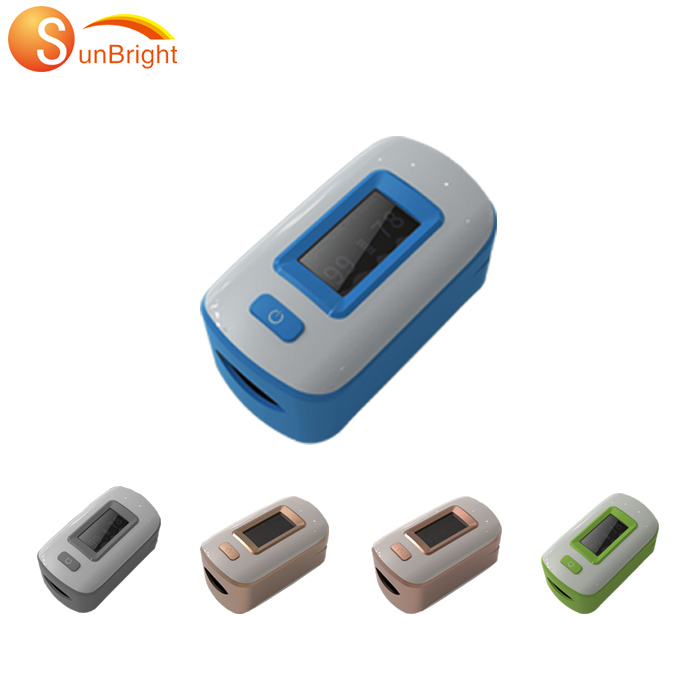

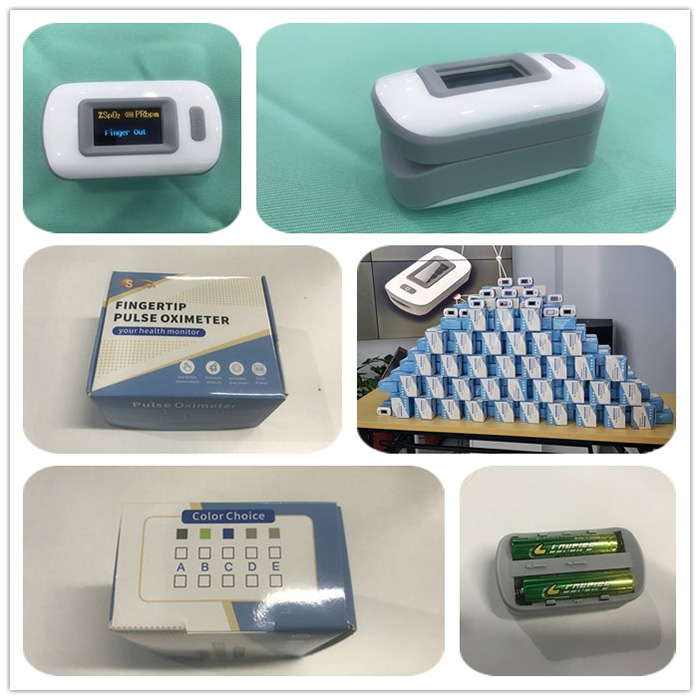

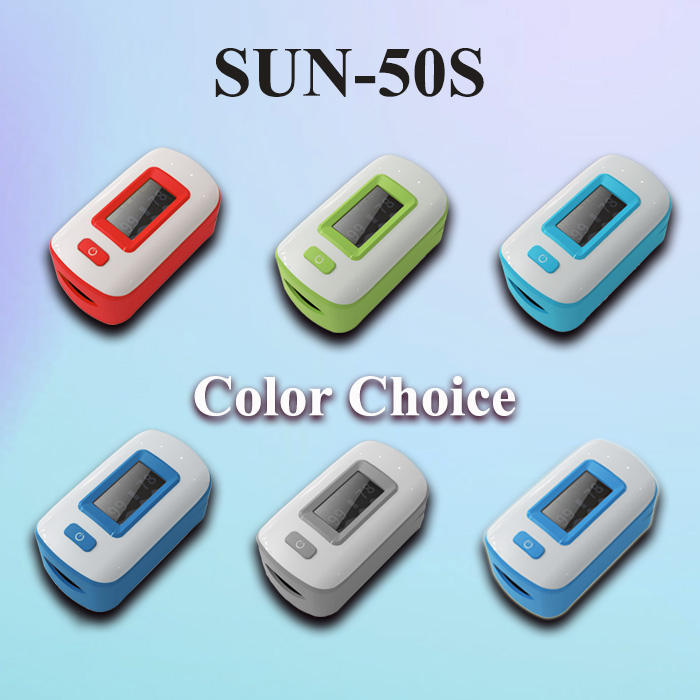

Pulse Oximeter

Advantages:

Can be used in hospital, home, community medical treatment, sports healthcare, etc. Can measure SPO2, PR,PI accurately.

Specifications:

            Screen

            Color OLED Screen

            SPO2 and PR display, PR waveform and barograph display

            4 ways display

            Automatic Switch OFF feature

            Real-time SpO2 waveform.SpO2 and Pulse Rate numeric display and plethysmograph

            SpO2

            Measurement range：36% ~ 99%Resolution：1%

Accuracy：±2%（70% ~ 99%）

            Pulse Rate

            Measurement range：30bpm ~ 250bpm

Resolution：1bpm

Accuracy：±1% or 1bpm

            Power supply

            D.C. 3.0V (2 × AAA alkaline batteries)

            Working current

            20mA ~ 130Ma

            Battery life

            Not less than 18 hours

            Weight

            50g (including batteries)

            Operating Environment Requirements

            Temperature: 5-40℃
Ambient humidity:≤93%（no condensation）

Atmosphere pressure: 86-106 kPa

            Storage, transportation condition

            Temperature:（-20~55）℃

            Atmosphere pressure

            （50~106）kPa

            Certificate

            ISO13485 and CE approval

Back Up

Screen	Color OLED Screen
SPO2 and PR display, PR waveform and barograph display
4 ways display
Automatic Switch OFF feature
Real-time SpO2 waveform.SpO2 and Pulse Rate numeric display and plethysmograph
SpO2	Measurement range：36% ~ 99% Resolution：1% Accuracy：±2%（70% ~ 99%）
Pulse Rate	Measurement range：30bpm ~ 250bpm Resolution：1bpm Accuracy：±1% or 1bpm
Power supply	D.C. 3.0V (2 × AAA alkaline batteries)
Working current	20mA ~ 130Ma
Battery life	Not less than 18 hours
Weight	50g (including batteries)
Operating Environment Requirements	Temperature: 5-40℃ Ambient humidity:≤93%（no condensation） Atmosphere pressure: 86-106 kPa
Storage, transportation condition	Temperature:（-20~55）℃
Atmosphere pressure	（50~106）kPa
Certificate	ISO13485 and CE approval
