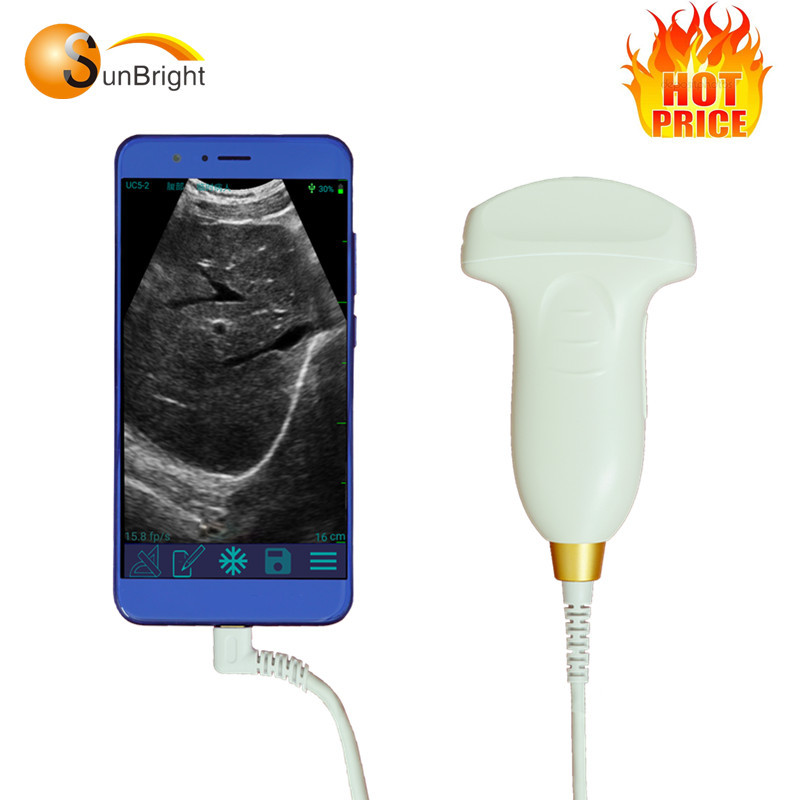

New arrival ultrasound probe 128 element USB/type C convex probe

System Description
Sun-P1 is an ergonomically designed portable and ease-of-use pocket ultrasound system for multi-specialty uses, such as adults, pregnant women, pediatric patients and neonates. It is intended for use in peripheral vascular, anesthesia, small parts, MSK, athletic medical, abdominal, gynecology, obstetrics, urological, ICU.

Dimensions and Weight
Width: < 135mm
Depth: < 80mm
Height: < 30mm
Weight: < 150g


Operating Environment
Ambient temperature: 10~30 deg
Relative humidity: <80%
Atmospheric pressure: 700 hPa~1060 hPa


Storage & Transportation Environment
Ambient temperature: -20~55 deg
Relative humidity: <95%
Atmospheric pressure: 700 hPa~1060 hPa


Transducer Types & Scanning Methods
Transducer Types
1.Linear array transducer
2.Convex array transducer
3.Phased array transducer(coming soon)


Scanning Methods
1.Electronic linear
2.Electronic convex
3.Electronic sector


System software application

 Vascular, Small parts, Nerve, Abdomen, Obstetrics, Gynecology, Urology


Measure
Distance
Area
Volume
Ratio (distance or area)
OB measure package

Body mark


Annotations

Text

Arrow
Ellipse
Rectangle



Technical Parameter
Power consumption:1W
Imaging mode: B-Mode, PW-Mode (probe dependent)
Frequency: Linear(5-14Mhz) Convex(3-5Mhz)
Probe element: 80/ 128 for selection
Gray scale level: 256
Dynamic range:>120dB
Maximum frame rate: 20 FPS (probe dependent)
Cine review: 100 frames
System scanning depth:
linear probe: ≤70mm
Convex probe: ≤240mm
Image Save: JPG, DICOM
Port: micro USB3.0/2.0

Compatible Device:
Android System:
Huawei P10, Honor 9, Mate 9…
Samsung S8, S9, Note8…
LG:V20, G6…


Windows:
OS≥windows 8.1, CPU≥Intel CoreM

For more information, please contact directly! :-)
