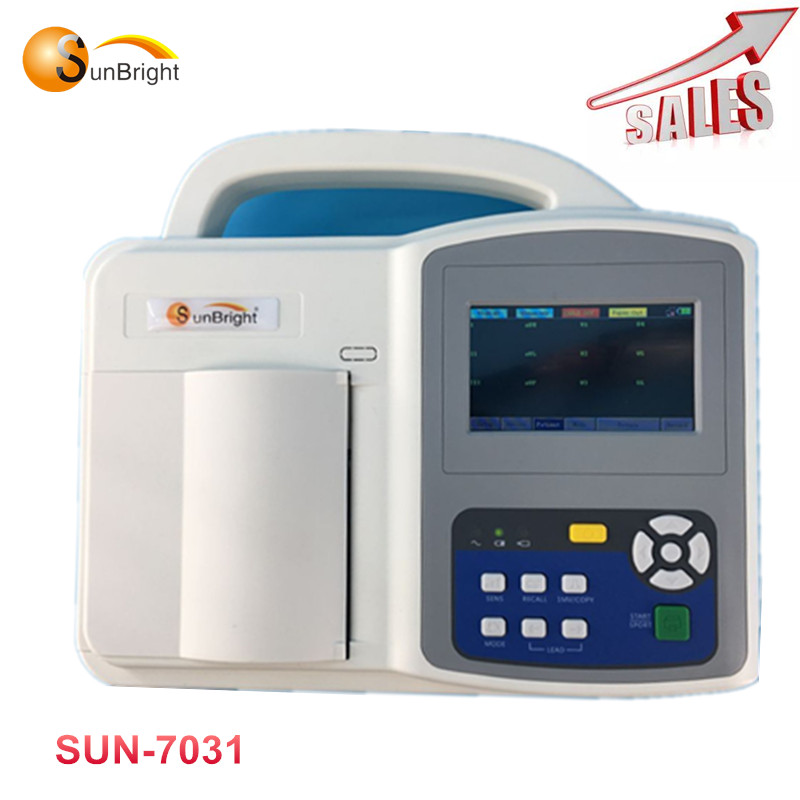

Portable 3 channel 12 leads touch screen ECG machine SUN-7031 for hospital ICU use
Features
3 channel ECG machine with interpretation
Manual/Auto/Arrhythmia Analysis Modes
80mm 3-ch recording with rhythm lead
Built in rechargeable Li-ion battery
4.3" color LCD Touch Screen display
Adaptor 110-230V, 50/60Hz AC power supply
Built in USB/RS232 interface(ECGNET software Optional)
Technical Specification
Lead:standard 12 leads
Calibrating voltage: 1mV±2%
Voltage tolerance: ≥±500mV
Time constant: ≥3.2s
Frequency response: 0.05~160Hz(-3db)
Noise level: <15μVp-p
Sensitivity valve: ≤20μV
Sensitivity: 2.5, 5, 10, 20mm/mV
Inter-channel Interference: ≤0.5mm
Paper speed: 6.25, 12.5, 25, 50mm/s(±3%)
Input dynamic range:±10Vpp
Filter: AC Filter : 50Hz / 60Hz
EMG Filter : 25Hz / 45Hz
Anti-Drift Filter : 0.15Hz (Adaptive)
CMMR: ≥120dB (with AC filter)
Input Impedance: ≥50MΩ
Input circuit current: ≤0.05μA
Patient current leakage:<10μA
Lead acquisition: 12bit/1000Hz(synchronously 12 leads)
Work modes: MAN,AUTO,ANALYSIS modes
Input circuit: floating; protection circuit against defibrillator effect
Display: 4.3 inch colour LCD
ECG waveform,100 patient save/replay
|
Patient cable
|
1set
|
|
Limb electrode
|
4sets
|
|
Chest elelctrodes
|
6sets
|
|
Gounding cable
|
1set
|
|
Paper axis
|
1set
|
|
Thermal paper
|
1set
|
|
Fuse
|
2sets
|
|
3-cord power cord
|
1set
|
|
AC Adaptor
|
1set
|
For more information, please contact us directly! Tks very much! :-)
