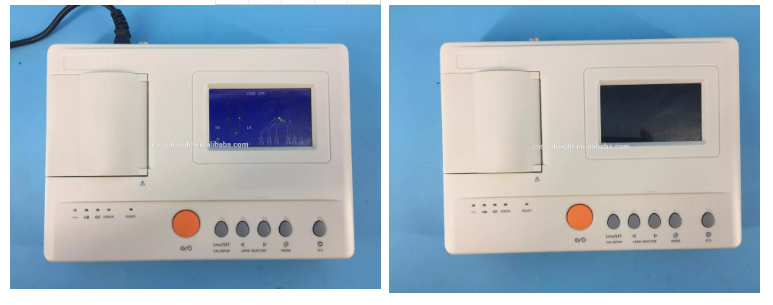

SUN-9012 single channel color display ECG machine price
Features
● 1 digital channel ECG machine
● Manual/Auto 1-Channel Simulatneously-Printing(without distortion)
●50mm*20m recording with rhythm lead
● Built in rechargeable Li-ion battery
● Adaptor 110-230V, 50/60Hz AC power supply
● RS-232/USB2.0/RJ-45/SD Interface Audio Output Interface
Technical Specification
● Lead:standard 12 leads
● Calibrating voltage: 1mV±2％
● Voltage tolerance: ≥±500mV
● Time constant: ≥3.2s
● Frequency response: 0.05～160Hz(-3db)
● Noise level: ＜15μVp-p
● Sensitivity valve: ≤20μV
● Sensitivity: 1.25,2.5, 5, 10, 20, 40mm/mV+-2%
● Inter-channel Interference: ≤0.5mm
● Paper speed: 5, 6.25, 10, 12.5, 25, 50mm/s（±3％）(6 levels adjustment)
● Input dynamic range:±10Vpp
● Filter:
AC Filter : 50Hz / 60Hz
EMG Filter : 25Hz / 45Hz
Anti-Drift Filter : 0.15Hz (Adaptive)
● CMMR: ≥120dB (with AC filter)
● Input Impedance: ≥50MΩ
● Input circuit current: ≤0.05μA
● Patient current leakage: ＜10μA
● Lead acquisition: 12bit/1000Hz（synchronously 12 leads）
● Work modes: MAN、AUTO、ANALYSIS modes
● Input circuit: floating; protection circuit against defibrillator effect
● Display: 4.3 inch color LCD
● ECG waveform,200 patient save/replay
Standard Configuration
● Patient cable 1 set
● Limb electrode 4 sets
● Chest electrodes 6 sets
● Grounding cable 1 set
● Paper axis 1 set
● Thermal paper 1 set
● Fuse 2 sets
● 3-cord power cord 1 set
● AC Adaptor 1 set
